2 - pieces 1" PVC pipe, 7" long (one piece with 1&Mac218;4" hole drilled 11&Mac218;2" from one end)
1 - piece 1" PVC pipe, 2" long
2 - 900 1" PVC elbows
2 - end caps, 1" PVC
1 - piece athletic shoestring, 7" long (wick)
1 - Tobacco curing thermometer with bulb guards cut out
1 - wide rubber band
1 - piece of thread (not shown) 4" long to tie wick to thermometer bulb
Instructions for Construction, Filling and Using

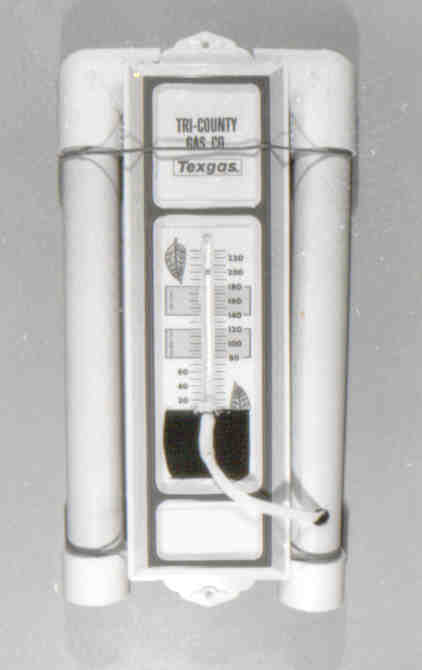

1. Glue all PVC pipe together as shown in figure.
2. Carefully remove glass thermometer bulb from holder and cut out in a 1 to 1 1/2. square around bulb.
3. Replace glass thermometer bulb and calibrate according to another thermometer.
4. Secure thermometer to PVC pipe with rubber band or light gauge wire.
5. Fill with water. Use a large syringe or a small snout "squeeze-it" type plastic detergent bottle.
6. Insert wick into water. A small nail, large toothpick, or kitchen match stick may be helpful.
7. Place in curing barn where air flow is strong. In updraft barns (e.g. Roanoke, Long, Powell) lay wet-bulb device flat on its back on the perforated floor near the loading doors. In down-draft barns (e.g. bulk tobacco), lay wet-bulb device flat on its back near the loading doors where air flow will strike the wet bulb of the thermometer.
8. Open fresh air vents only enough to maintain a wet-bulb temperature of 100 degrees to 105 degrees F during leaf drying and 105 degrees to 110 degrees F during stem drying.
